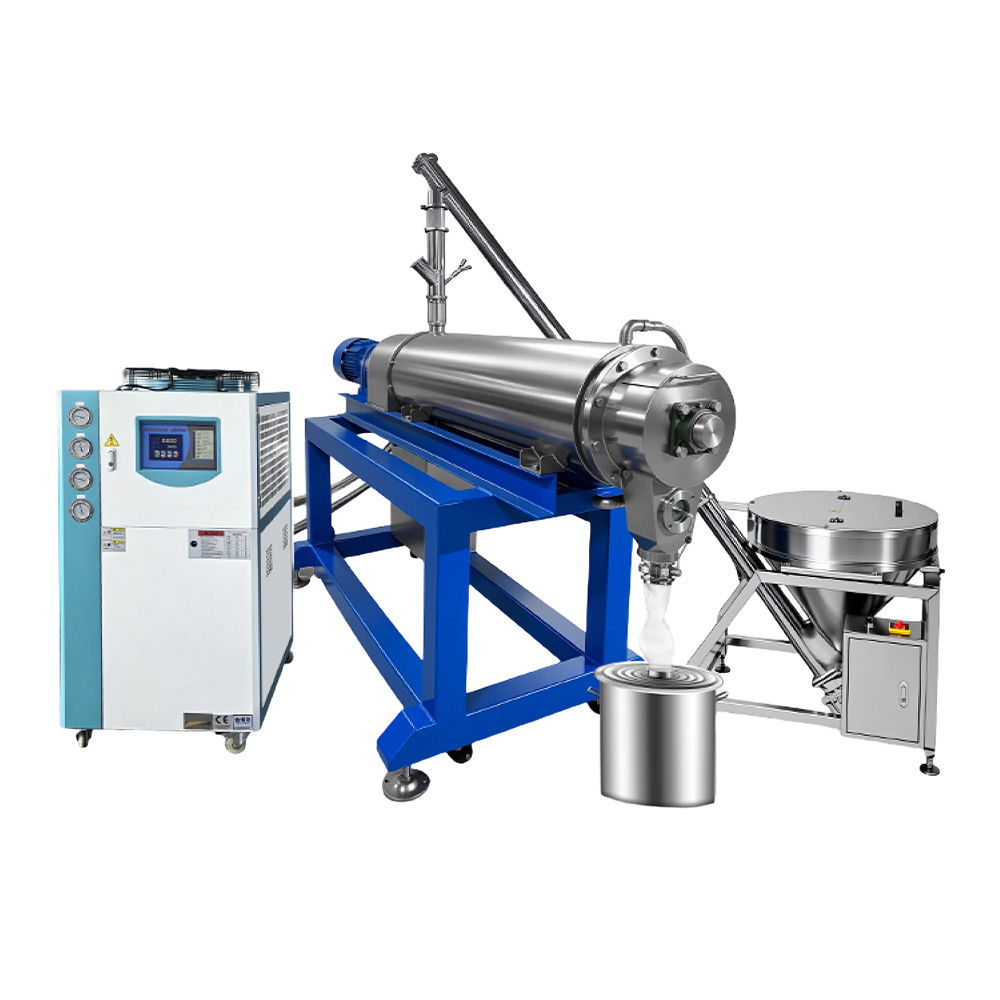

DQM-150 Continuous Ultra-Fine Tea Ball Mill | Water-Cooled Zirconia Bead Matcha Grinding Machine With Automatic Screw Feeder & Industrial Chiller
Working Principle
Grinding beads roll driven by the main shaft. The stainless steel damping screw stirs small-diameter zirconia beads. Rolling friction and extrusion pressure between zirconia beads accelerate tea leaf crushing and continuously grind tea into ultra-fine matcha powder.
The zirconia beads are about 5mm in diameter with tiny gaps between beads, enabling full and even force on tea leaves for sufficient & uniform pulverization.
Mandatory configuration: The main grinding machine must be matched with an automatic feeding machine and water chiller for normal operation.
The zirconia beads are about 5mm in diameter with tiny gaps between beads, enabling full and even force on tea leaves for sufficient & uniform pulverization.
Mandatory configuration: The main grinding machine must be matched with an automatic feeding machine and water chiller for normal operation.
1) HF-01 Automatic Screw Feeder
- Voltage: 220V/380V
- Power: 1.5kW
- Rotation Speed: 0-300r/min adjustable
- Feeding Capacity: 1500kg/h
- Hopper Volume: 60L large stainless steel bin
- Structure: Anti-stick vibrator, forward/reverse rotation switch, transparent feeding observation window
2) DQM-150 Grinding Main Host
- Grinding Tank Volume: 110L, double-layer 304 food-grade stainless steel
- Grinding Media: Food-grade 95 zirconia beads
- Main Motor Power: 11000W pure copper core motor
- Main Shaft Speed: 27-272r/min stepless adjustable
- Continuous Output: 15-30kg/h
- Max Powder Fineness: 2500 mesh
- Outlet Design: Butterfly valve + magnetic impurity separator, replace collecting barrel without stop
3) XC-8HP Industrial Water Chiller
- Refrigeration Capacity: 18748 kcal/h
- Adjustable Cooling Temp: 5-20°C
- Equipped with high/low pressure gauges, intelligent digital control panel, powerful heat dissipation fan
